Dimensions Guide

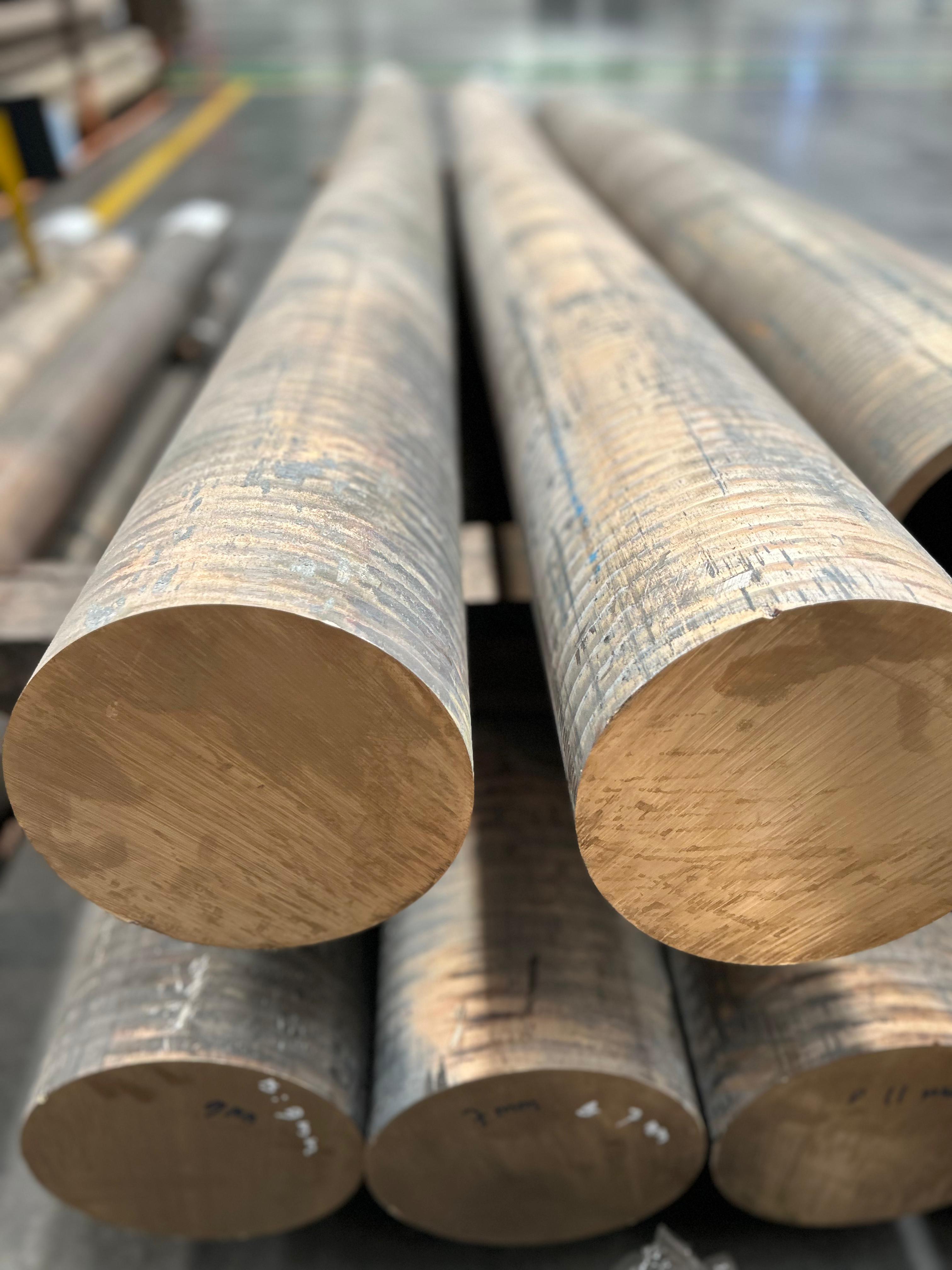

Solid

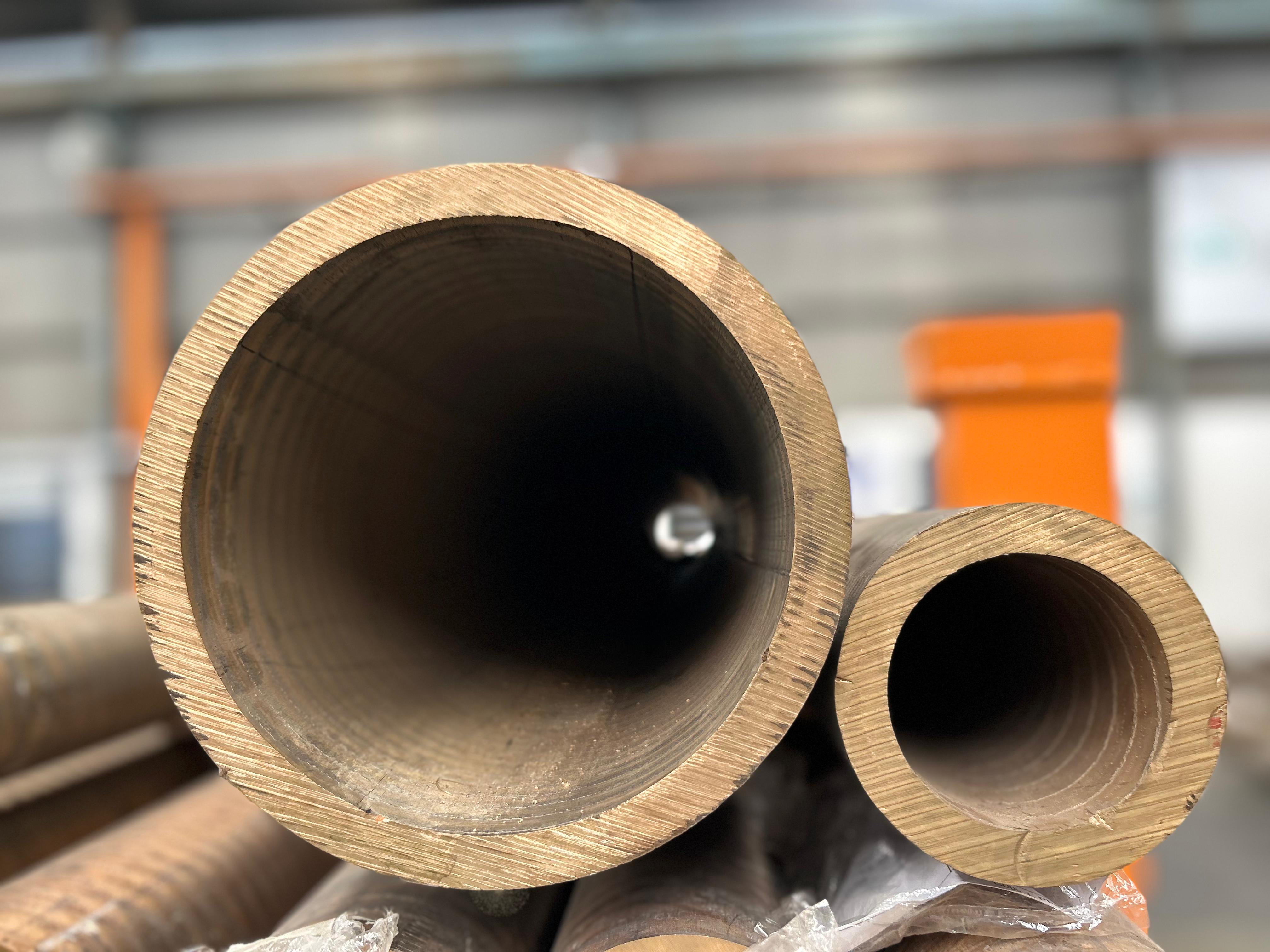

Hollowed
| Diameter |
|---|
| 1" |
| 2" |
| 3" |
| 4" |
| 5" |
| 6" |
| 7" |
| 8" |
Horizontal Continuous Casting
Horizontal Continuous Casting
RG7
NAME
Tin Bronze Alloy
DIMENSION
CHEMICAL COMPOSITION
Cu 81.0-86.0%
Zn 2.0-5.0%
Sn 5.2-8.0%
Pb 5.0-8.0%
GENERAL CHARACTERISTIC
Easy to machine, adequate corrosion resistance
MECHANICAL PROPERTIES
Tensile: min 260 N/mm2 Elongation: min 12%
APPLICATION
Slide bearings, bearing bushes, valve and pump housings
We can custom manufacture according to your specific requirements.
