Dimensions Guide
Tin Bronze
| Length | Width | Thickness |
|---|---|---|
| 455mm | 110mm | 70mm |

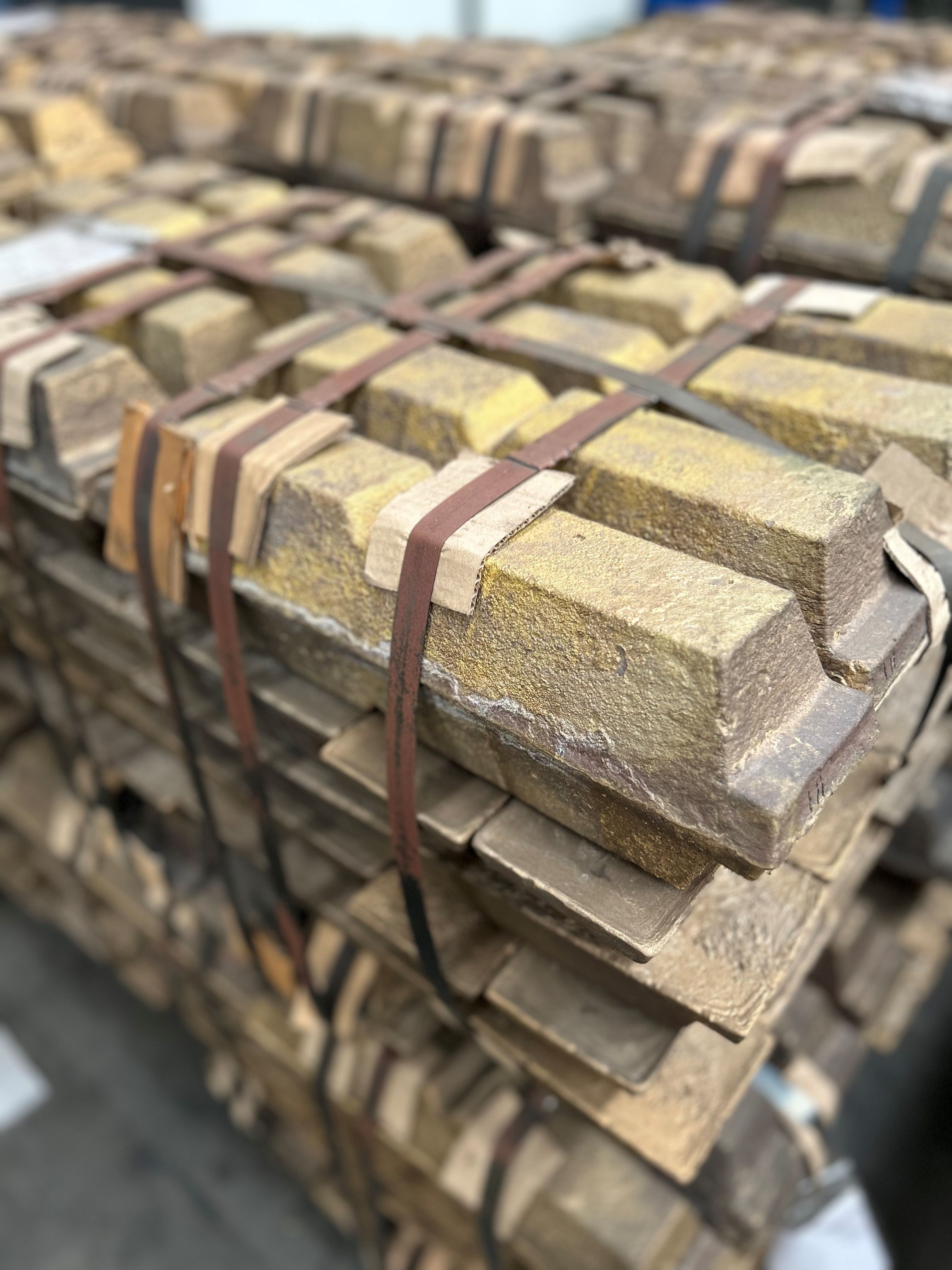

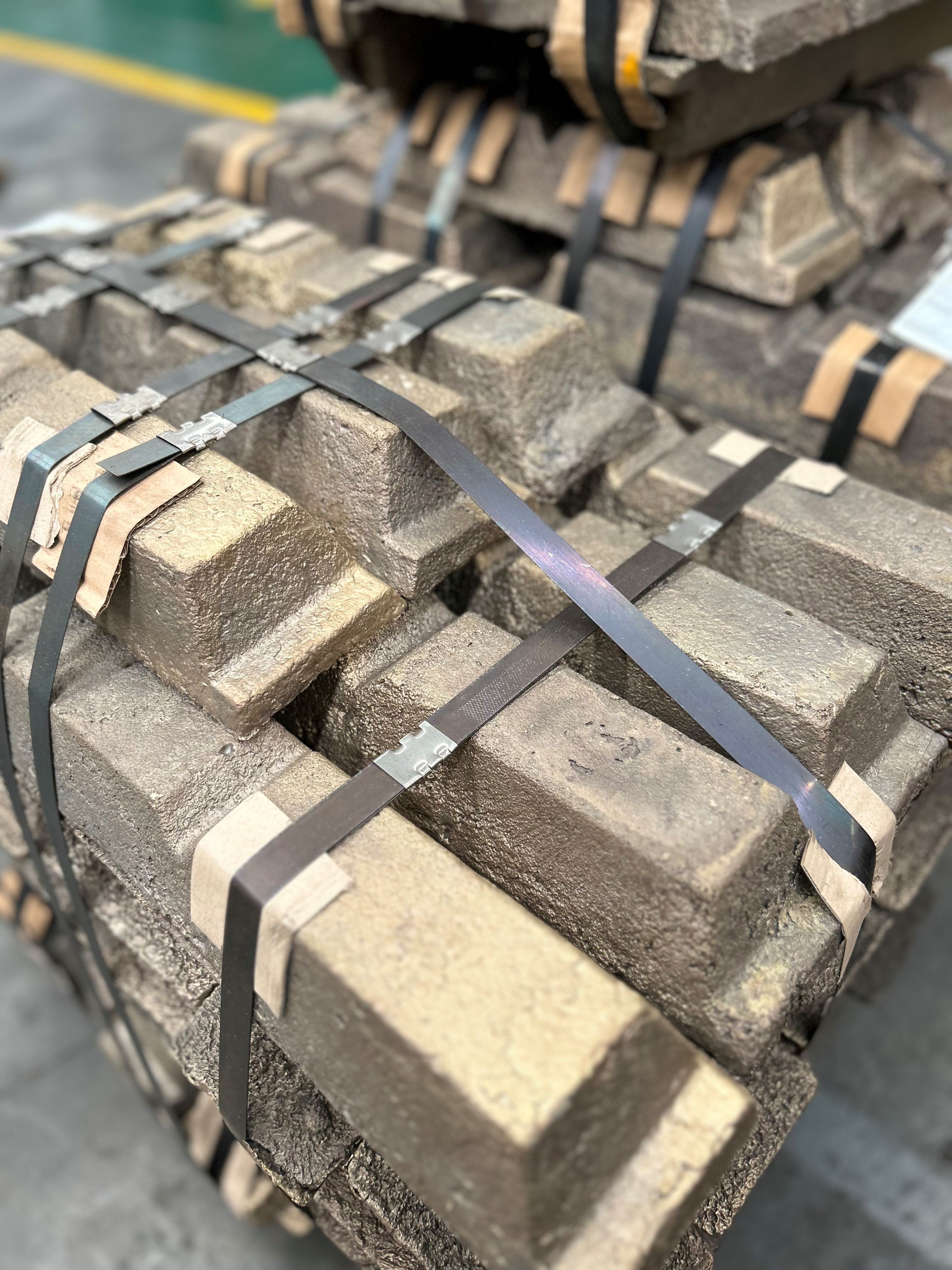

Ingot
Ingot
BC2/90300
NAME
Tin Bronze
DIMENSION
CHEMICAL COMPOSITION
Cu 86.0-90.0%
Zn 3.0-5.0%
Sn 7.0-9.0%
Pb Max 1.0%
Fe Max 0.2%
Ni Max 0.8%
GENERAL CHARACTERISTIC
Strong alloy with good corrosion resistance, high wear resistance and moderate machinability.
MECHANICAL PROPERTIES
-
APPLICATION
Machinery Part, Valve, Bushing, electric Part
We can custom manufacture according to your specific requirements.
