Dimensions Guide
Aluminium Bronze
| Outer Diameter | Inner Diamater | Thickness |
|---|---|---|
| 800mm | 600mm | 370mm |

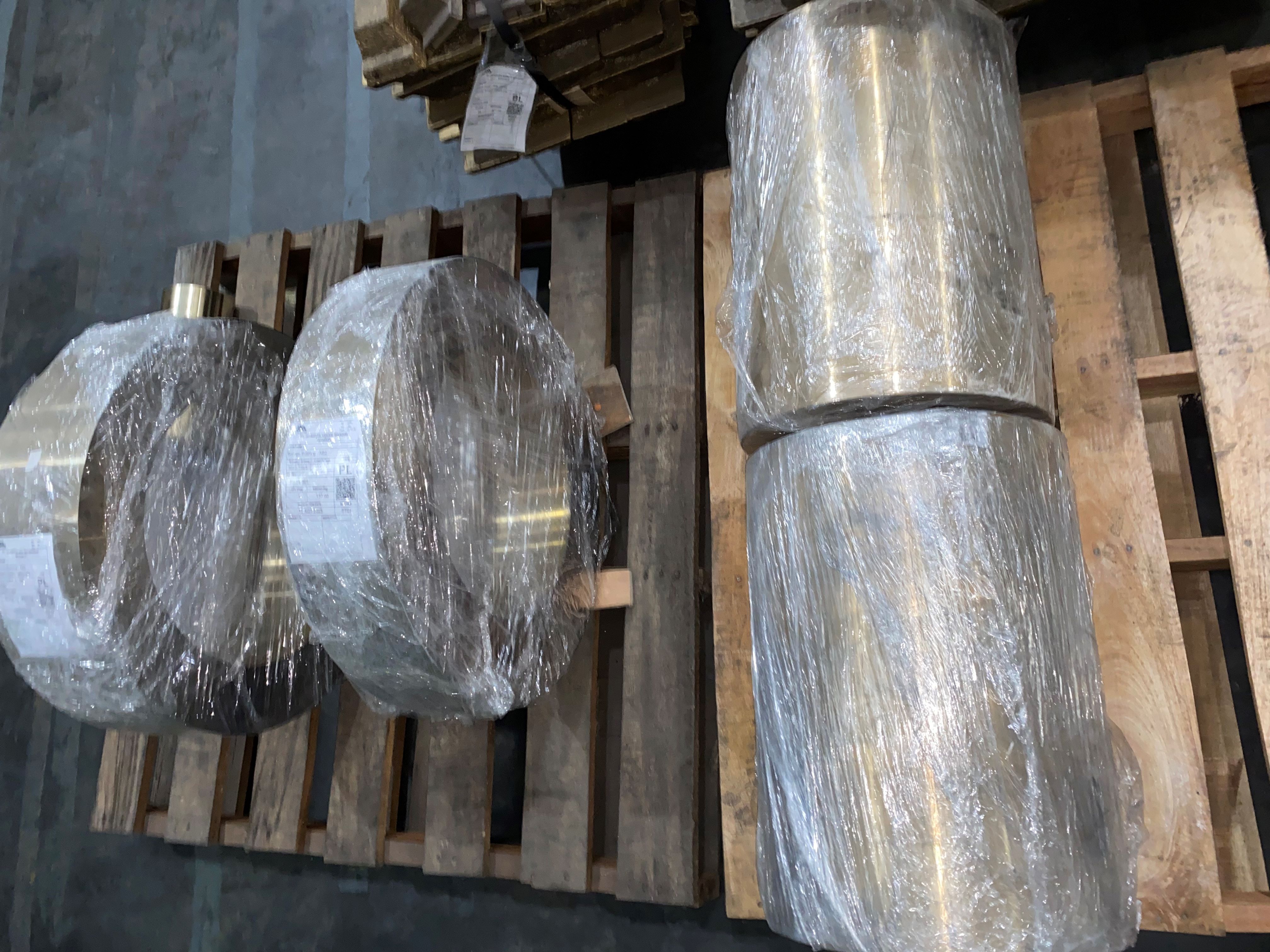

Centrifugal Casting
Centrifugal Casting
AB2
NAME
Aluminium Bronze
DIMENSION
CHEMICAL COMPOSITION
Cu Min 79.0%
Pb max 0.03%
Fe 3.5-4.5%
Al 8.5-9.5%
Ni 4.0-5.0%
GENERAL CHARACTERISTIC
Low casting yield, High drossing and Medium fluidity
MECHANICAL PROPERTIES
Tensile : Min 640 N/mm2
Elongation : 13%
Elongation : 13%
APPLICATION
Nuts, Bushing, Gears, Propeller, Shaft, Valve, Marine
We can custom manufacture according to your specific requirements.
