Dimensions Guide
Manganese Bronze
| Length | Width | Thickness |
|---|---|---|
| 455mm | 110mm | 70mm |

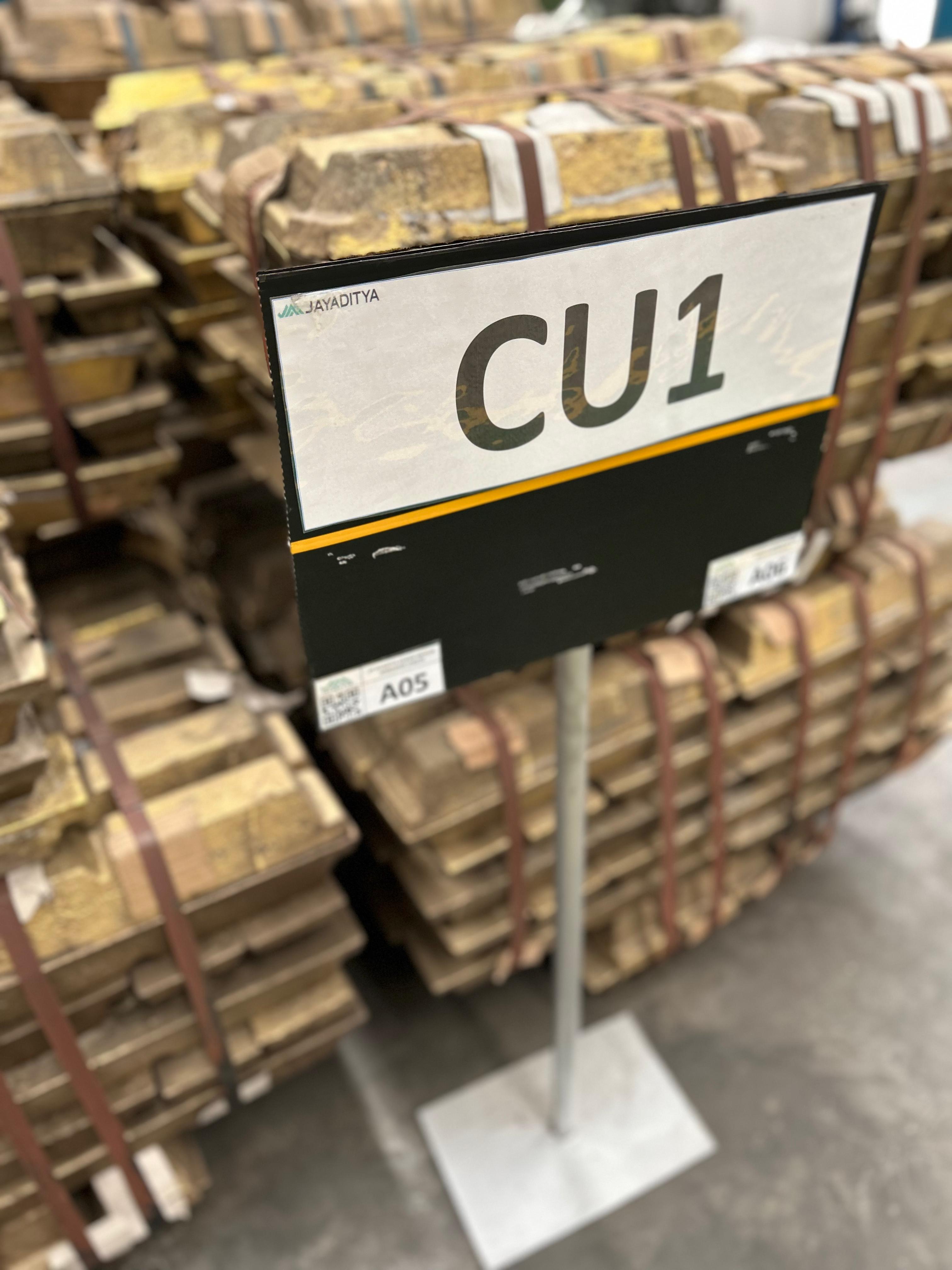

Ingot
Ingot
CU1
NAME
Manganese Bronze
DIMENSION
CHEMICAL COMPOSITION
Cu 52.0-62.0%
Zn Max 35.0-40.0%
Sn 0.1-1.5%
Pb Max 0.4%
Fe 0.5-2.5%
Ni Max 1.0%
Al 0.5-3.0%
Bi Mn =0.5-4.0%
GENERAL CHARACTERISTIC
High strength and good plasticity, can well withstand pressure processing in hot and cold states, has good corrosion resistance, and has high thermal strength.
MECHANICAL PROPERTIES
Tensile: Min 440 N/mm2 Elongation: Min 20%
APPLICATION
Manufacturing of propeler for marine
We can custom manufacture according to your specific requirements.
